Carbon disc rotor

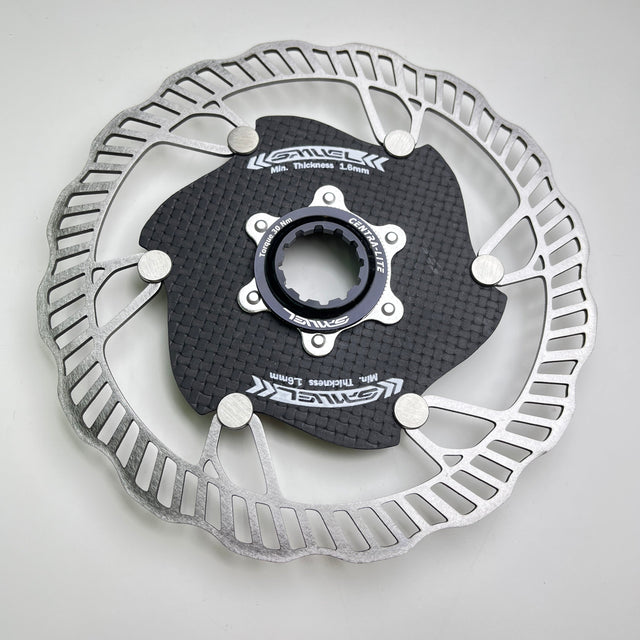

Samuel Carbon Centerlock Disc Rotor
A carbon-composite Centerlock disc rotor from Taiwan, available in Standard or semi-solid Aero form in 140mm and 160mm. It tests well above ISO 4210 braking requirements, wet and dry.
Highlights
Why we rate it
Light carbon construction
High-modulus carbon ribs and aerospace epoxy are heat-compressed into a stiff, light rotor.
Strong, consistent braking
Exceeds 550N peak braking force in ISO 4210 testing against a 350N minimum, with the same performance wet and dry.
Handles the heat
Resin with a glass transition above 300°C resists fade on long descents.
Quiet in the wet
Carbon's natural damping suppresses howl and squeal, confirmed in heavy-rain downhill testing.
Aero option
The semi-solid Aero version smooths airflow past the spokes for less turbulence.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Material
- Carbon composite, high Tg aerospace epoxy
- Mount
- Centerlock (adapter included in weights)
- Sizes
- 140mm, 160mm
- Thickness
- 1.83mm
- Weight Standard 160mm
- 90g

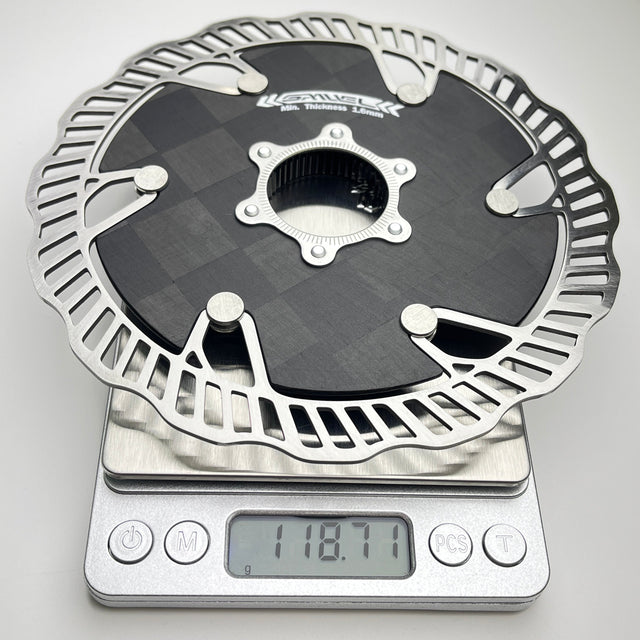

- Weight Aero 160mm
- 119g

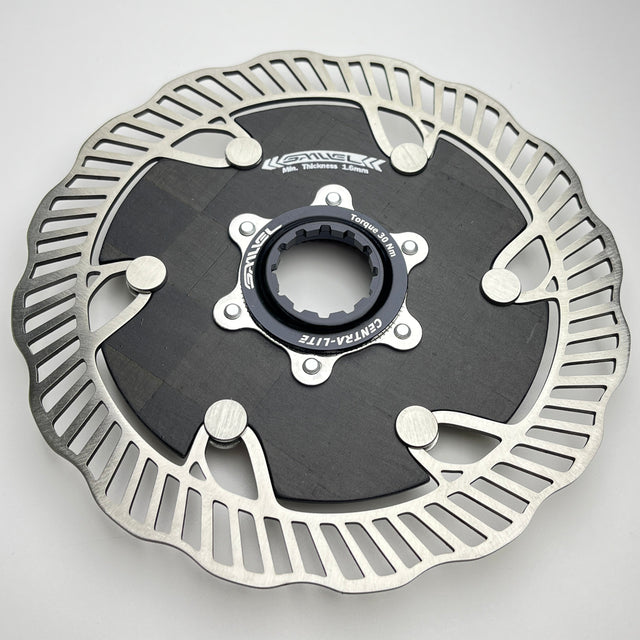

- Weight Aero 140mm
- 99.5g
- Braking force
- Over 550N peak (ISO 4210 min. 350N)
- Resin Tg
- Over 300°C
- Certification
- ISO 4210 wet and dry, TAF-accredited lab
- Made in
- Taiwan
In the box
- Includes
- 1 rotor
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
