Deore XT wide-platform SPD trail pedal

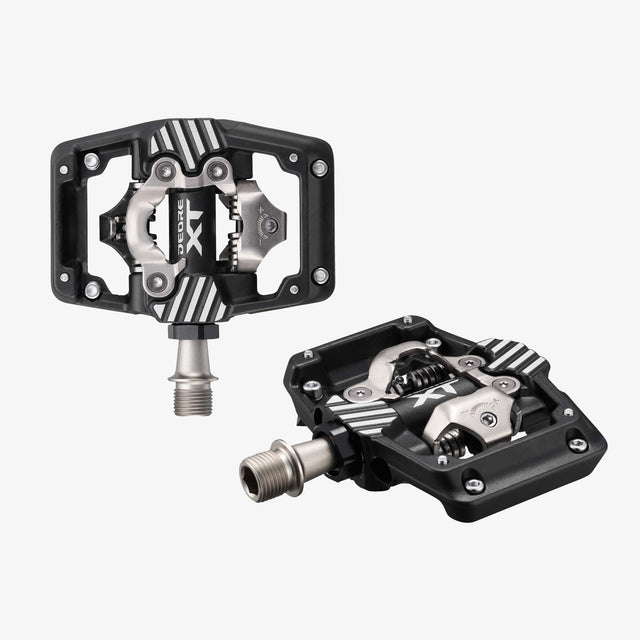

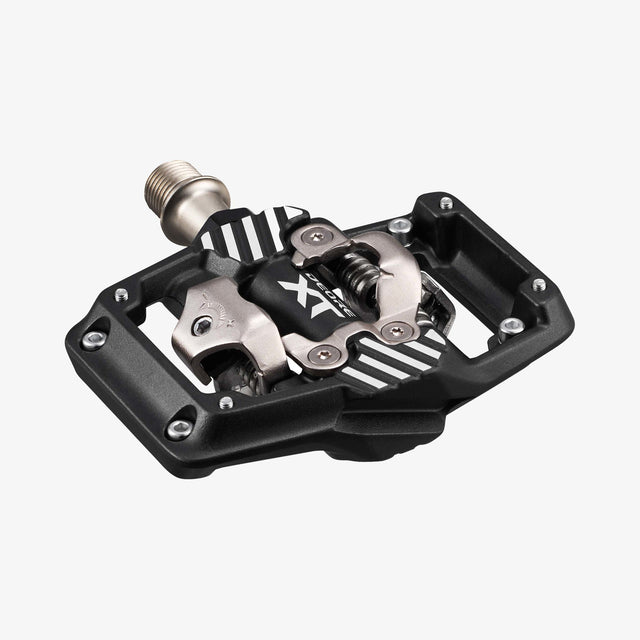

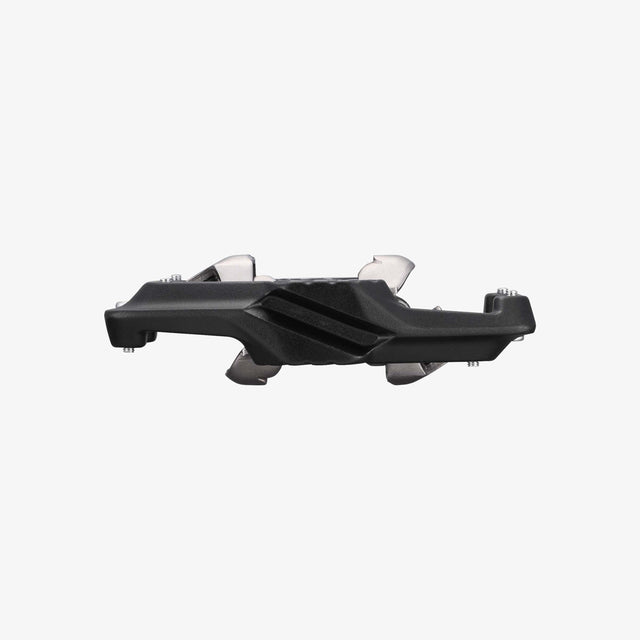

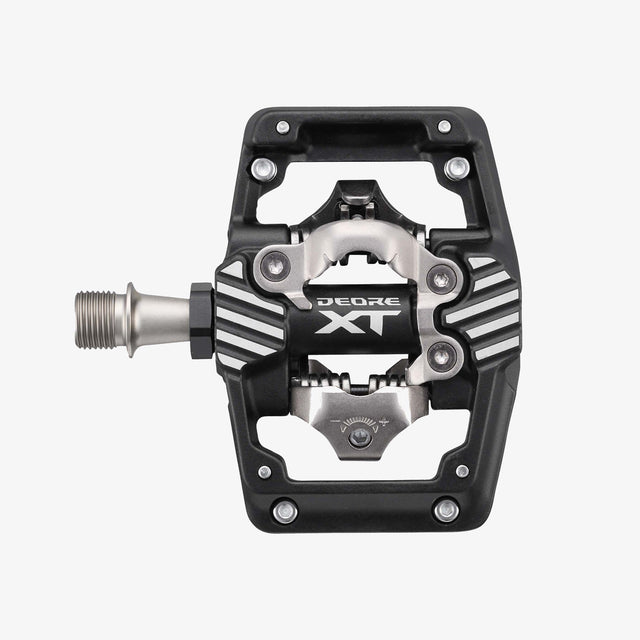

Shimano Deore XT PD-M8220 SPD Trail Pedals
New for 2026, this replaces the M8120 and brings the XTR M9220's wide, pinned platform down to Deore XT money. A tough outer cage protects the mechanism from rock strikes, and it ships with the new CL-MT001 cleat.
Highlights
Why we rate it
XTR-derived platform
The wide contact area and grip pattern come from the M9220 and keep the foot stable on descents.
Adjustable traction pins
Four removable pins per side can be tuned for grip with your shoe.
Protective outer cage
A robust cage shields the binding from rock strikes on rough trails.
Improved seals
An updated seal design keeps the bearings turning smoothly for longer.
Easy engagement cleat
The included CL-MT001 cleat allows a straight-down or heel-first clip-in and is backwards compatible with SPD.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Pedal system
- SPD, dual-sided
- Cleat included
- CL-MT001 (multi-direction entry)
- Body
- Aluminium with integrated cage
- Axle
- Chromoly, 9/16in, 8mm hex
- Bearings
- Sealed
- Weight
- 472g per pair (Shimano claimed)
- Stack height
- 16.2mm
- Traction pins
- 4 per side, removable
- Release tension
- Adjustable
- Colour
- Black
- Replaces
- PD-M8120
In the box
- Includes
- Pair of PD-M8220 pedals
- Includes
- CL-MT001 SPD cleats
- Includes
- 1.0mm cleat spacers
