Deore XT forged-alloy flat pedal

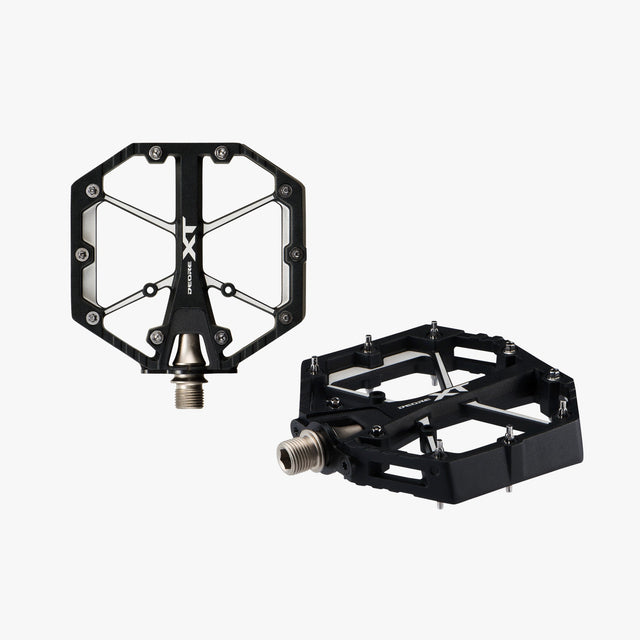

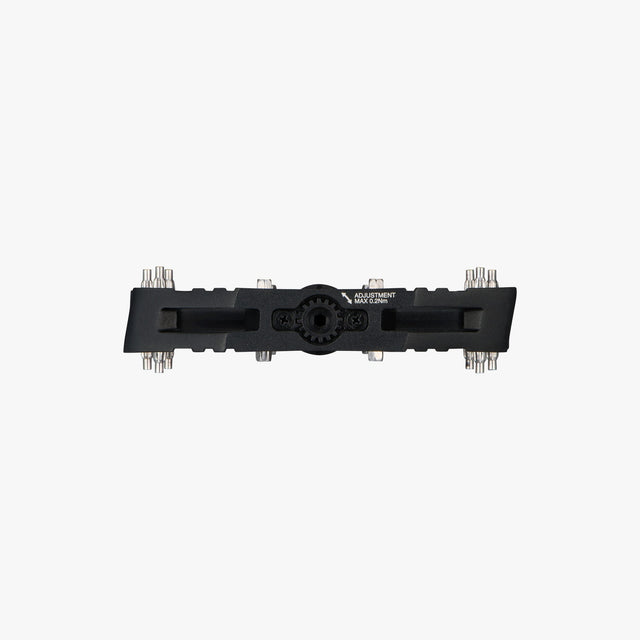

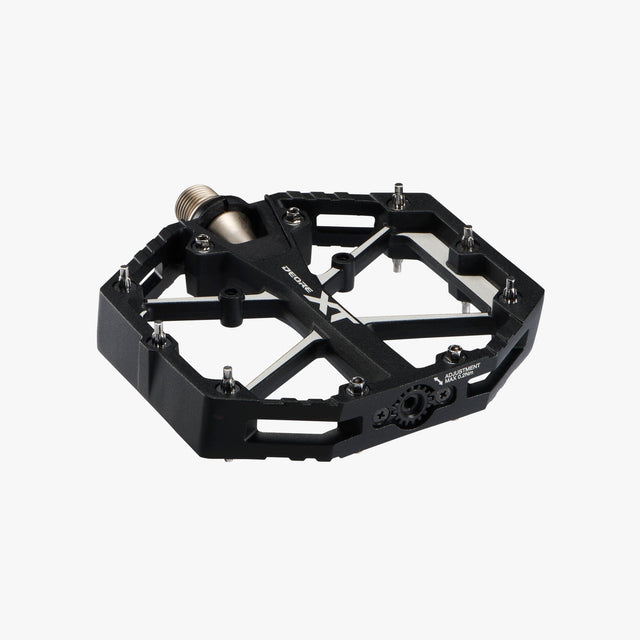

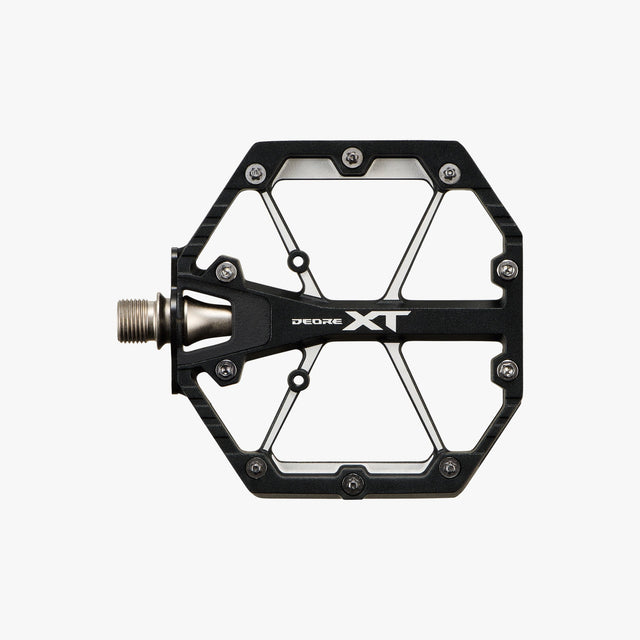

Shimano Deore XT PD-M8240 MTB Flat Pedals
The new Deore XT flat pedal, replacing the M8140, has a big dual-concave platform and a thin, uniform body for ground clearance. Pins come in two lengths, and the pedal can be fully rebuilt.
Highlights
Why we rate it
Dual-concave platform
The extra-wide body lets the shoe settle into the pedal for secure, predictable grip.
Thin, uniform profile
A slim body improves ground clearance and keeps the feel consistent across the platform.
Tunable pin layout
Ten pins per side plus two optional inner positions, with 6mm and 3mm pins supplied to tune grip.
Serviceable axle
The axle and bushing design is built for durability and can be fully rebuilt.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Pedal type
- Flat
- Body
- Forged aluminium
- Platform
- 121 x 110mm, dual concave
- Traction pins
- 10 per side, plus 2 optional inner positions
- Pin options
- 6mm and 3mm included
- Axle and bearings
- Chromoly axle with bushing construction, fully serviceable
- Thread
- 9/16in
- Weight
- 423g per pair (Shimano claimed)
- Colour
- Black
- Replaces
- PD-M8140
In the box
- Includes
- Pair of PD-M8240 pedals
- Includes
- Spare 6mm and 3mm pins
- Includes
- E5 pin socket tool
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
