Carbon SPD-SLR road race pedal

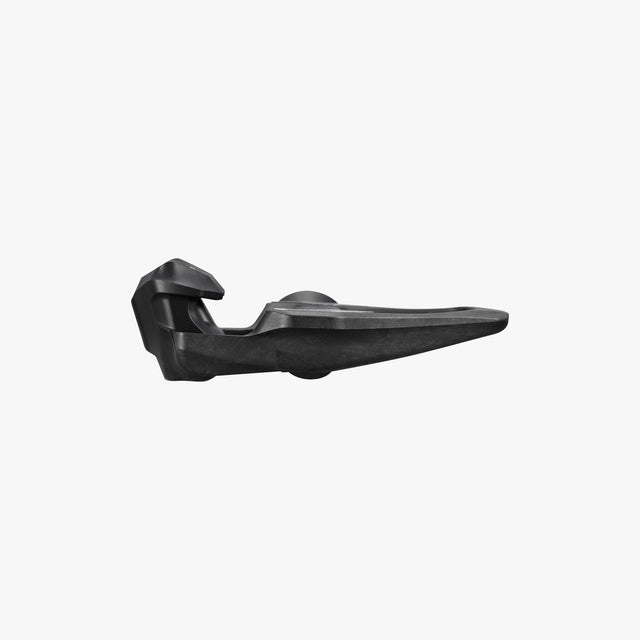

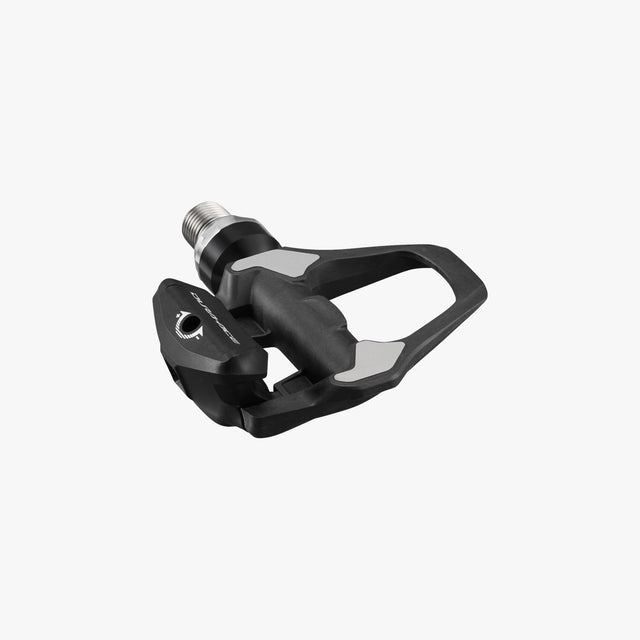

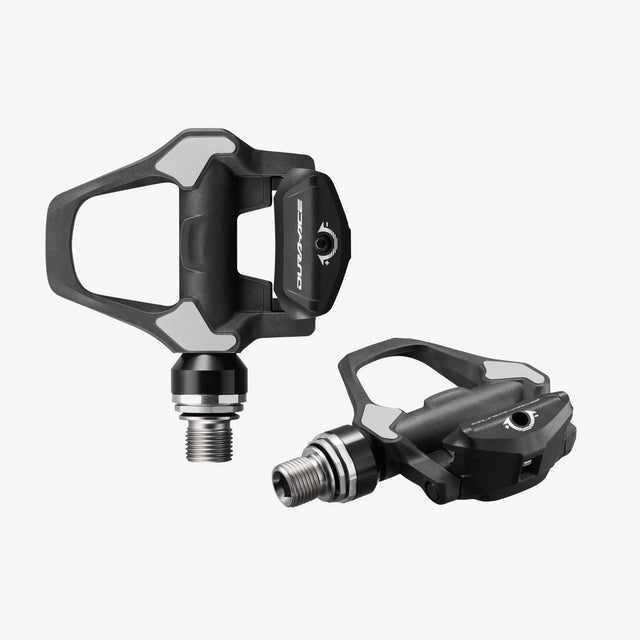

Shimano Dura-Ace PD-R9300 SPD-SLR Road Pedals
Shimano's newest flagship road pedal and the first on its SPD-SLR system, launched September 2026. It drops the shoe closer to the axle than any Shimano pedal before it, for a firmer, more connected feel under hard efforts.
Highlights
Why we rate it
Lowest Shimano stack yet
Pedal stack is 2.3mm lower than Dura-Ace SPD-SL. Paired with SPD-SLR shoes, the total saving is about 3mm.
Gapless cleat interface
The cleat locks onto the pedal body with no gap, so there is less rocking and a more direct feel.
Outboard bearing
One of the two cup-and-cone bearings sits outside the pedal body. This stiffens the platform and cuts rotational drag compared with the Ultegra pedal.
Shallower entry angle
Engagement happens at about 10.5 degrees rather than SPD-SL's 15.5, so clipping in feels quicker and more natural.
New cleat family
Comes with yellow CL-SL110 cleats (6 degrees total float). Red fixed, blue 2-degree and grey CL-SL130 cleats are sold separately. The grey cleat gives SPD-SL-style fore-aft adjustment.
Not SPD-SL compatible
SPD-SLR cleats will not fit SPD-SL pedals and SPD-SL cleats will not fit these, so riders switching systems need new cleats.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Pedal system
- Shimano SPD-SLR (not compatible with SPD-SL cleats)
- Body material
- Injection-moulded carbon composite with stainless steel contact plate
- Bearings
- Cup-and-cone, one bearing positioned outboard of the body
- Weight
- 227g per pair (claimed); 228.3g measured by BikeRadar
- Stack height
- 12.5mm (claimed)
- Engagement angle
- 10.5 degrees
- Axle length
- Standard 52mm or +4mm (E1) version
- Tension
- Adjustable entry and release tension
- Cleat included
- CL-SL110 yellow SPD-SLR (6 degrees total float)
- Compatible shoes
- SPD-SLR shoes (e.g. S-Phyre RC910, RC810); 3-bolt shoes also fit
- Colour
- Black
In the box
- Includes
- Pair of Dura-Ace PD-R9300 pedals
- Includes
- CL-SL110 yellow SPD-SLR cleats
- Includes
- Cleat fixing bolts
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
