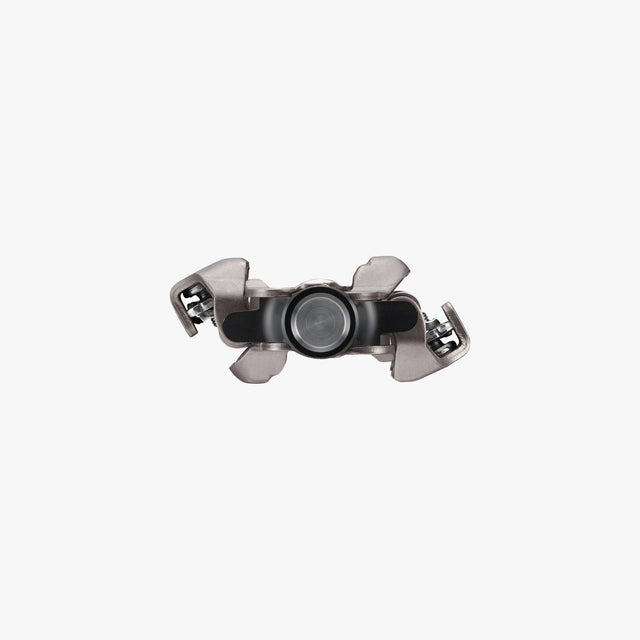

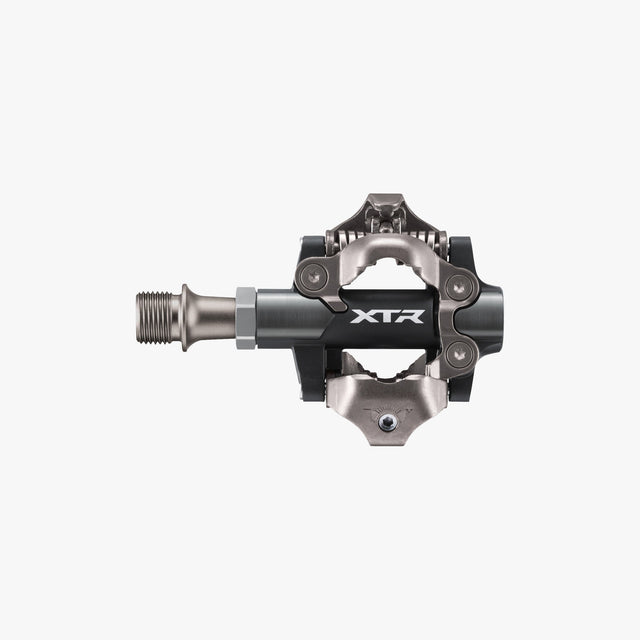

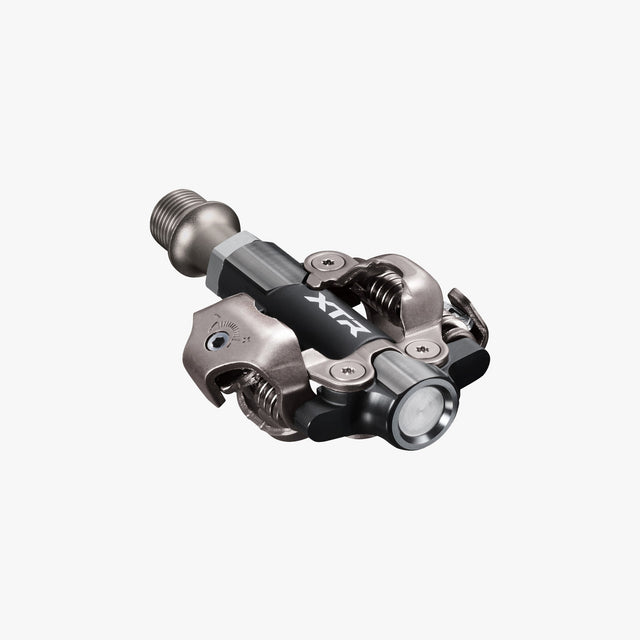

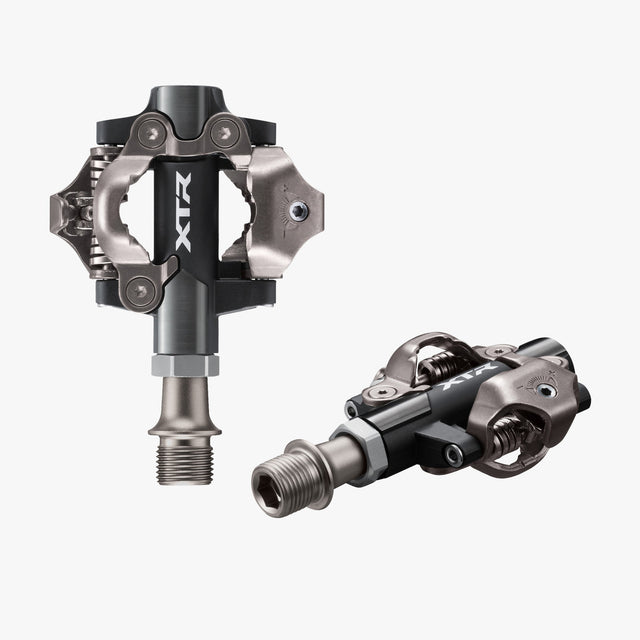

Shimano XTR PD-M9200 SPD XC Race Pedals
The current-generation XTR cross-country pedal, refining the M9100 with a slimmer, lighter axle and a low, rounded platform for racing on dirt or gravel. Offered in a standard or a 3mm-shorter axle so you can match your road Q-factor or tighten your stance.
Highlights
Why we rate it
Two axle lengths
Choose the standard axle or the -3mm short version to fine-tune stance width and Q-factor.
Low platform height
The shoe sits close to the axle for a stable, efficient pedalling platform under race efforts.
Mud-shedding open binding
An open, Teflon-coated mechanism and rounded contact area clear mud quickly for consistent clip-in.
Wide bearing spacing
Sealed cup-and-cone bearings set wide on a chromoly spindle give a solid feel and long service life.
Adjustable release tension
Spring tension can be dialled to suit experience level and riding conditions.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Pedal system
- SPD, dual-sided
- Cleat included
- SM-SH51 (single release)
- Body
- Forged aluminium
- Axle
- Hollow chromoly, 9/16in, 8mm hex
- Bearings
- Sealed cup and cone
- Weight
- 316g per pair (Shimano claimed, standard axle)
- Platform height
- 8.1mm
- Pedal centre
- 55mm standard / 52mm short (-3mm)
- Release tension
- Adjustable
- Colour
- Black
- Recommended use
- XC racing, cyclocross and gravel
In the box
- Includes
- Pair of PD-M9200 pedals
- Includes
- SM-SH51 SPD cleats
- Includes
- 1.0mm cleat spacers
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
