1x gravel crankset

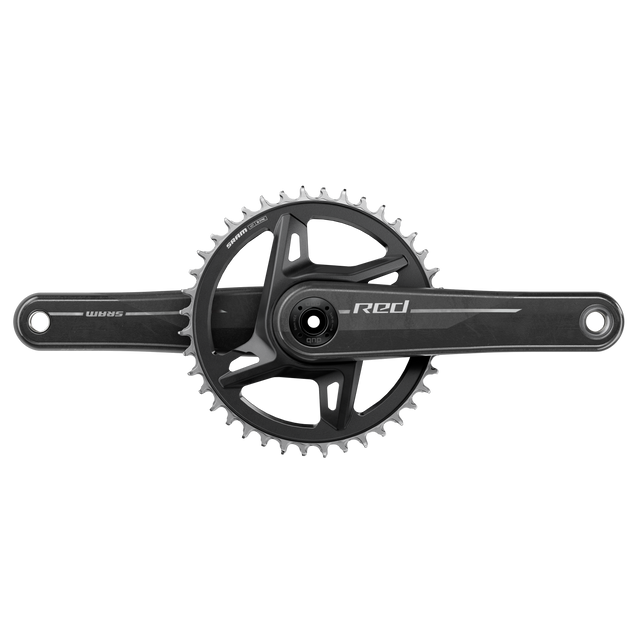

SRAM RED XPLR AXS E1 Crankset
RED's hollow carbon arms on a wider DUB stance for gravel tyre clearance, with removable Thread Mount 1x rings. Available plain or with a dual-sided spider power meter for 13-speed RED XPLR builds.
Highlights
Why we rate it
Built for clearance
The wide 47.5mm chainline and 6.5mm ring offset open up room for big gravel tyres on short chainstays.

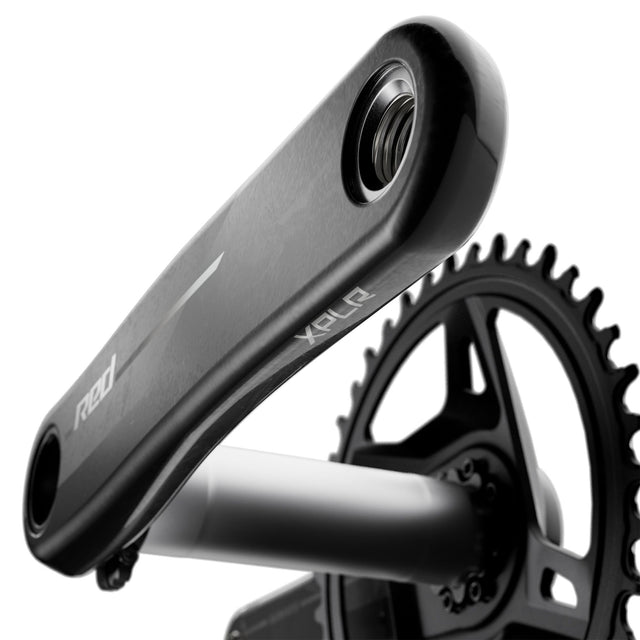

Carbon arms, gravel-tough
The same lighter hollow carbon arms as road RED, here tuned for long days on rough surfaces.
Swappable rings
Thread Mount chainrings can be changed without replacing the power meter, so you can gear for a race or a bikepacking trip.

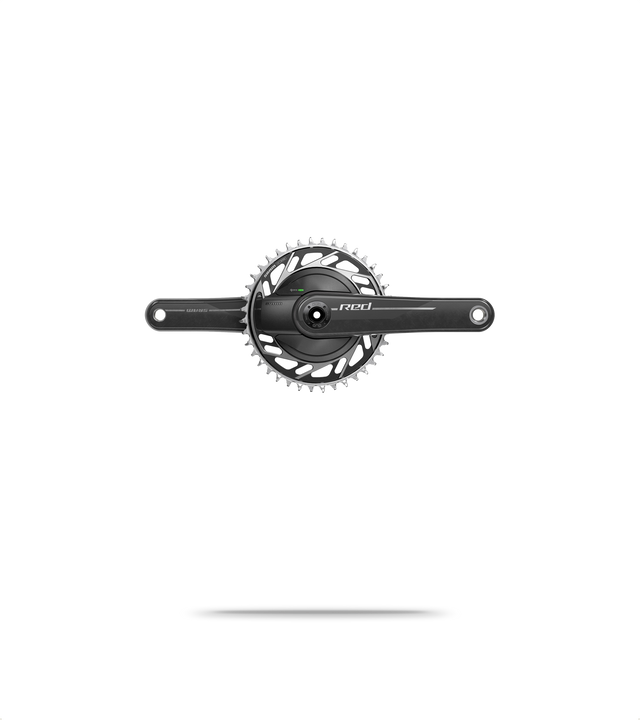

Dual-sided power
The power version measures both legs at the spider with left-right balance and runs about 200 hours on a CR2032.
13-speed ready
Made for the RED XPLR 13-speed drivetrain and also works with 12-speed SRAM 1x systems.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Model
- FC-RED-1W-E1 and FC-RED-1WP-E1
- Speeds
- 12 and 13 (1x)
- Chainrings
- 40T, 42T, 44T, 46T (Direct Mount; Thread Mount on PM version)
- Crank lengths
- 160, 165, 167.5, 170, 172.5, 175mm
- Crank material
- Hollow carbon fibre
- Spindle
- DUB 28.99mm
- BB compatibility
- All SRAM Road Wide DUB BBs (DUB Wide)
- Chainline
- 47.5mm
- Chainring offset
- 6.5mm
- Chain
- SRAM Flattop D1 and E1, Eagle, T-Type
- Power meter
- Spider, dual-sided, ±1.5%, IPX7
- Power meter battery
- CR2032, approx. 200 hours
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
