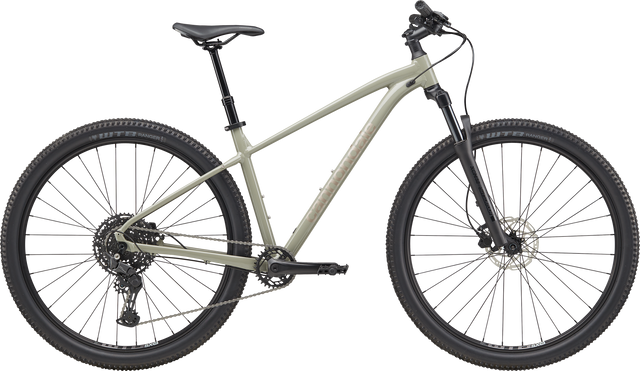

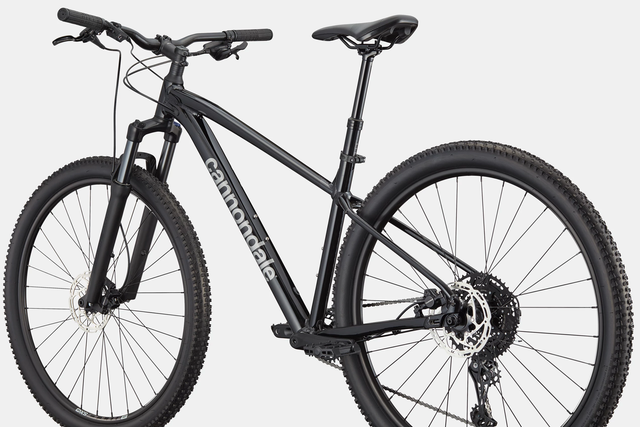

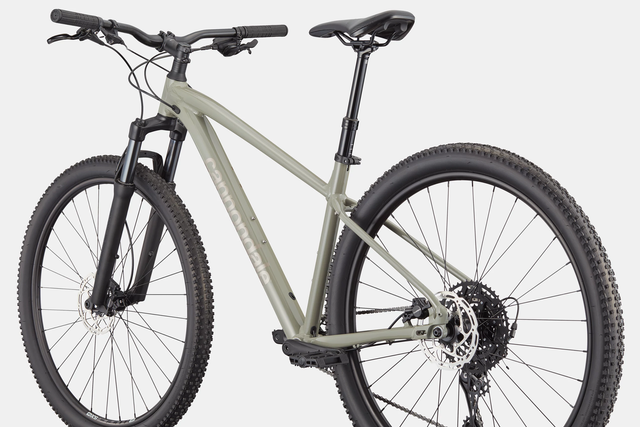

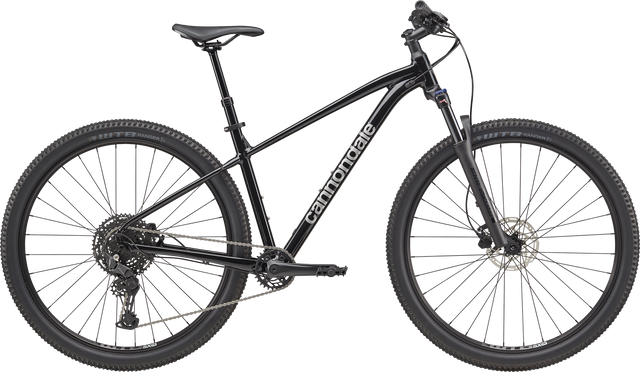

The Cannondale Trail is your first-class upgrade to next-level mountain biking—engineered for fun by a brand trusted by Champions.

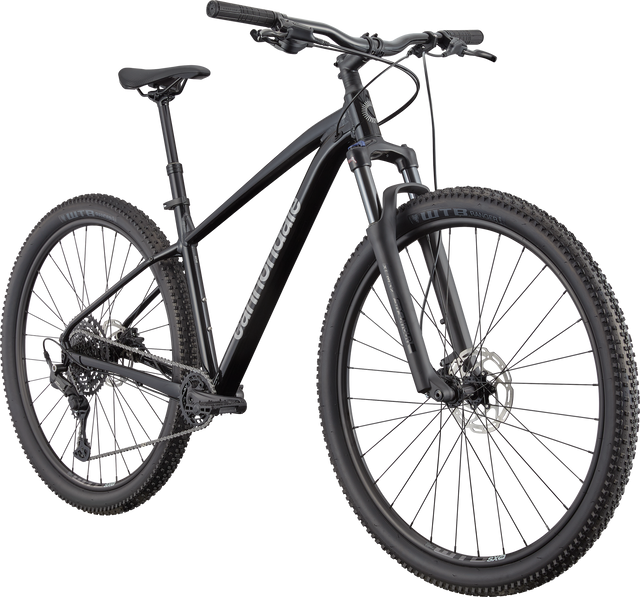

Trail 1 blends Cannondale’s 50 years of alloy expertise with modern trail capability. The SmartForm C3 alloy frame delivers a ride that’s light and responsive, while the SR Suntour XCM32 fork with 100mm travel (80mm on XS and Small sizes) takes care of the bumps so you can focus on the fun. Shimano’s CUES 10-speed drivetrain makes shifting smooth and reliable, and Tektro hydraulic disc brakes bring confidence to every descent. With a 130mm dropper post for instant seat adjustments, Trail 1 is proof that decades of innovation can deliver first-class performance, one ride at a time.
What it's for
Trail riding, light commuting, bopping around town, and having a blast.
Highlights
- A lightweight, durable SmartForm C3 Alloy frame
- 29” wheels on the larger sizes, 27.5” wheels on XS and Small for the best blend of fit and speed
- Bump-eating SR Suntour XCM32 Boost fork with 100mm of travel (80mm on XS and Small sizes)
- Shimano CUES U6000 10-speed shifting - wide range gearing with the simplicity of a single front chainring
- A hidden kickstand mount, plus mounts for a rack and fenders, offer true do-it-all versatility
Specifications
| Model Code | C26055U |
| Frame | Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL) |
| Fork | SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5") |
| Headset | Semi-Integrated, 1-1/8" |

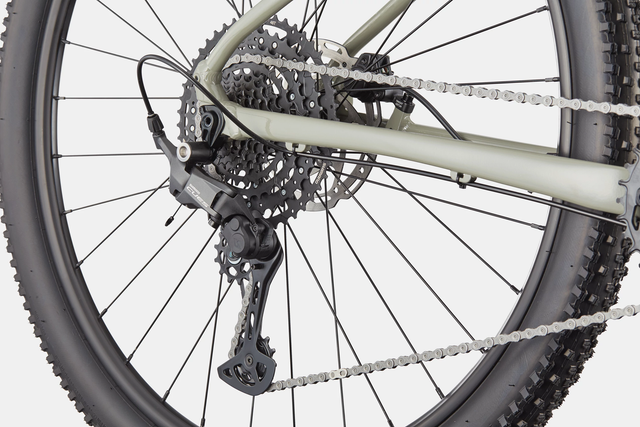

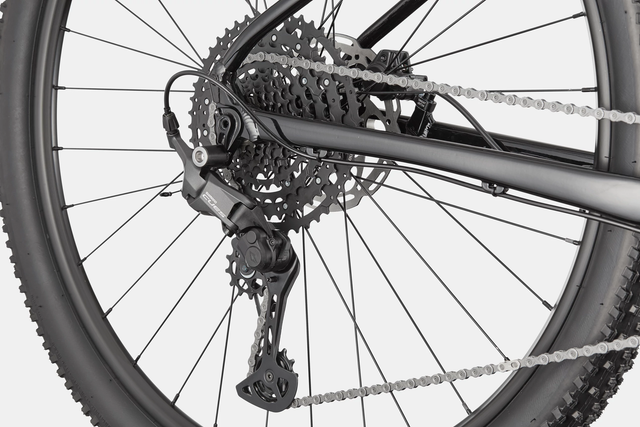

| Rear Derailleur | Shimano CUES U6000 |
| Shifters | Shimano CUES U6000, 10-speed |
| Chain | KMC X10, 10-speed |

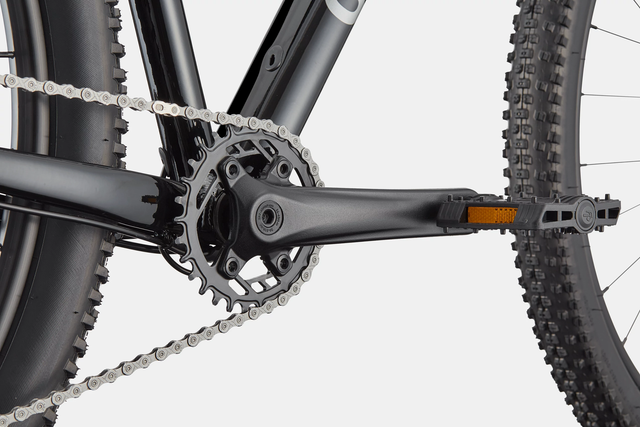

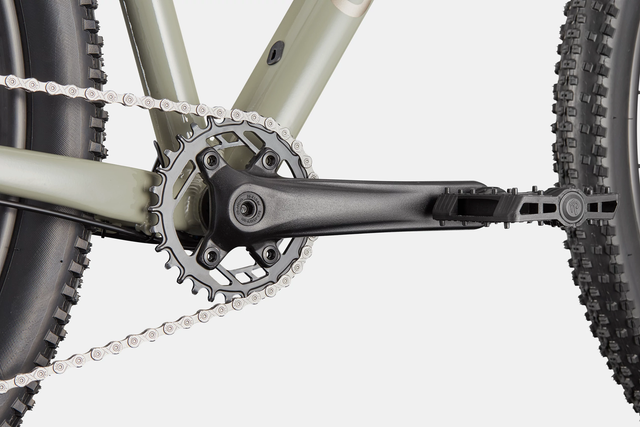

| Crank | Prowheel, Charm 30T |
| Rear Cogs | Shimano CUES, 11-48, 10-speed |
| Bottom Bracket | ProWheel, square taper |

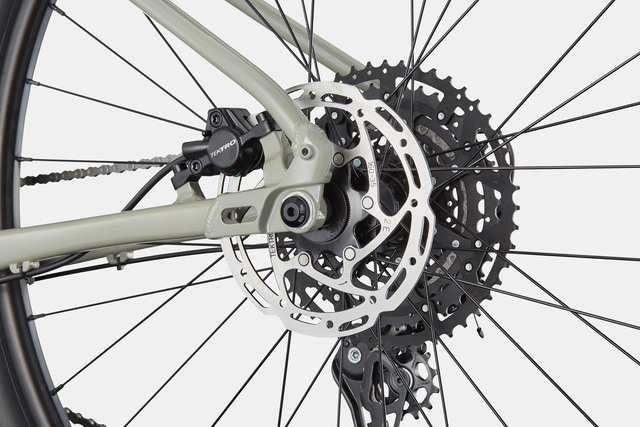

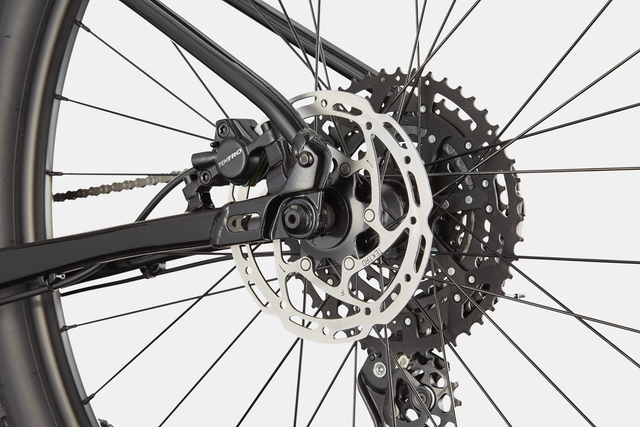

| Brakes | Tektro M275 hydraulic disc, 160/160mm rotors |
| Brake Levers | Tektro hydraulic disc |
| Front Hub | Shimano TC500, 15x100mm |
| Rear Hub | Shimano TC500, 12x142mm |
| Rims | WTB SX19, 32h |
| Spokes | Stainless Steel, 14g |
| Tire Size | 2.25 |
| Wheel Size | 27.5/29 |
| Tires | Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI |

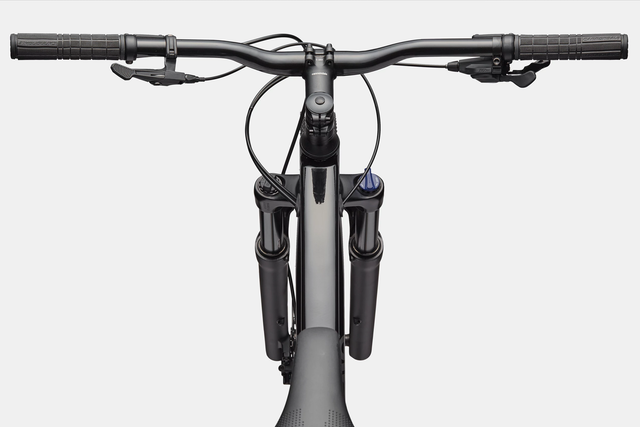

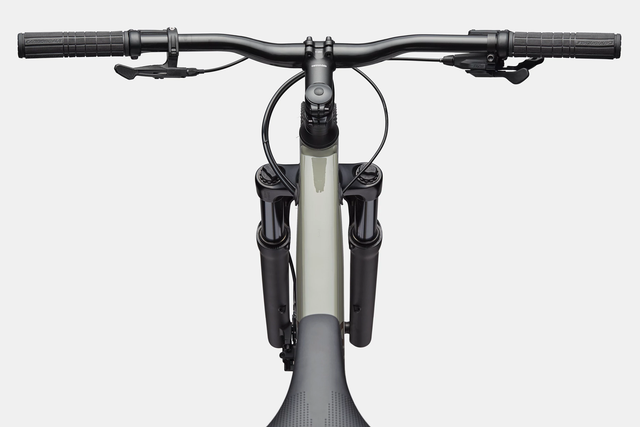

| Handlebar | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
| Stem | Cannondale 4, 6061 Alloy, 31.8, 6° |
| Grips | Cannondale |
| Saddle | Cannondale Trail |
| Seatpost | JD Dropper, internal routing, 31.6, 130mm |
Specifications from Cannondale and may change without notice.
